Yarı Otomatik İkili Conta Takma Sistemli Krimp İstasyonu

İki damarlı kabloları veya 2 adet tek damar kabloyu işlemek için

Description

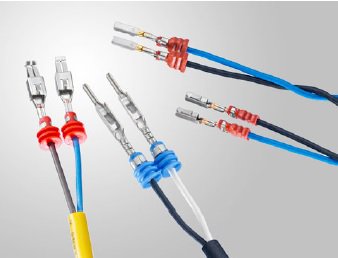

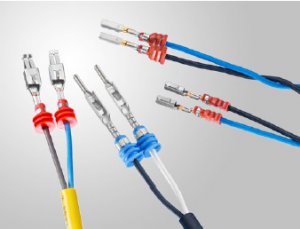

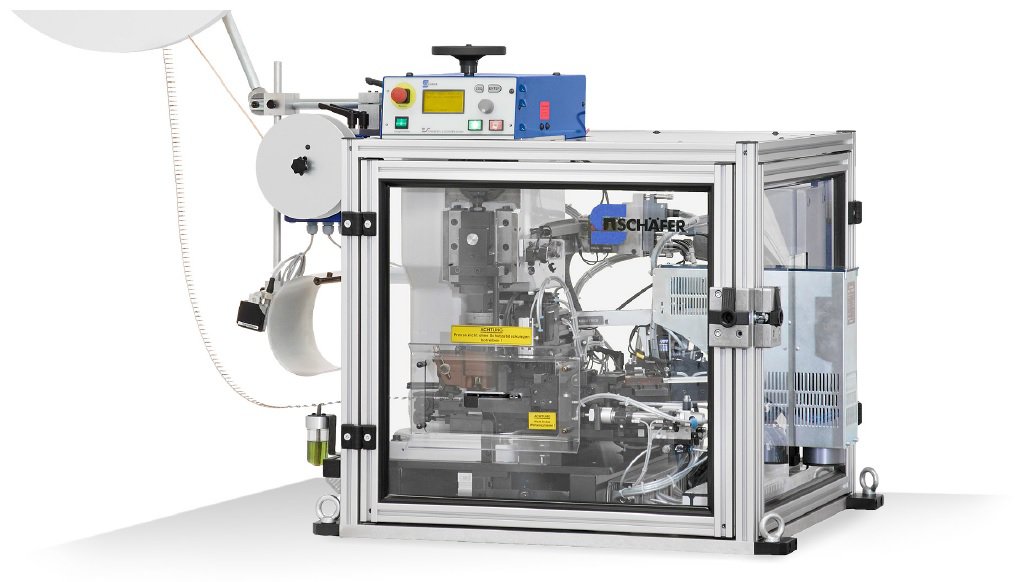

The crimping system SSC-2 processes two conductor jacketed cables or twisted pair wires. The process includes stripping, crimping and seal loading.

The cables are placed by the operator in to a centering mask. The sensors are detecting the correct placement of the leads and the process is initiated.

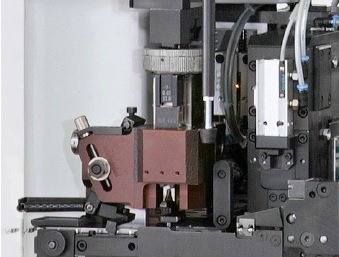

Both leads are loaded with a seal and stripped in one cycle. Hereto the seals are oriented with a specific seal kit SSK and a transfer unit is placing them as a pair in the stripping unit. The stripping unit closes centric and also contains a zero cut module. The offal is removed from the processing area with a vacuum device.

The customer specific terminals are crimped in sequence with a Schaefer crimping press and the corresponding applicator. The optionally available crimp force monitor in conjunction with the cut module provide for quality assurance. The terminal carrier strip is fed from left to right whereas the wires are mechanically transferred from right to left. The carrier strip is cut in to small pieces by a chopper which is mounted underneath the press.

The operator removes the processed cable and can immediately continue with the next one.

Basic configuration of the crimp system:

• Stripper with sensor detection
• Special wire grippers
• Eccenter press

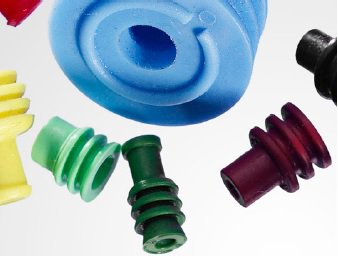

• Specific seal kit SSK
• Carrrier strip chopper
• Vacuum device for offal
• Protective housing

Range of Application The semi automatic machine SSC-2 is being used in the wire harness industry for automobiles.

Examples Of Use Product Combination Possibilities Technical Data

(1) Basic configuration
(2) Optional equipment
(3) Depends on the configuration (wire, terminal, seal)
(4) Processing wire ends must be directly straightened
